One, using the fifth generation of dynamic thermal cycling heating system, the higher the heat efficiency, the heating rate is faster and more water.
Two, the unique high, medium and low three intelligent mode, high-grade mode in winter, spring and autumn with mid-range pattern, summer low mode, according to different climate select different modes of heating, energy saving.
Three, the gold fixing rod heating technology of high thermal efficiency, service life is longer than ordinary heating tube. The use of integral foaming technology, effectively prevent heat loss, high efficiency and energy saving.
Four, automatic intelligent constant temperature, just a key to set the temperature of the bath, you can ensure that the constant temperature and comfort bath.

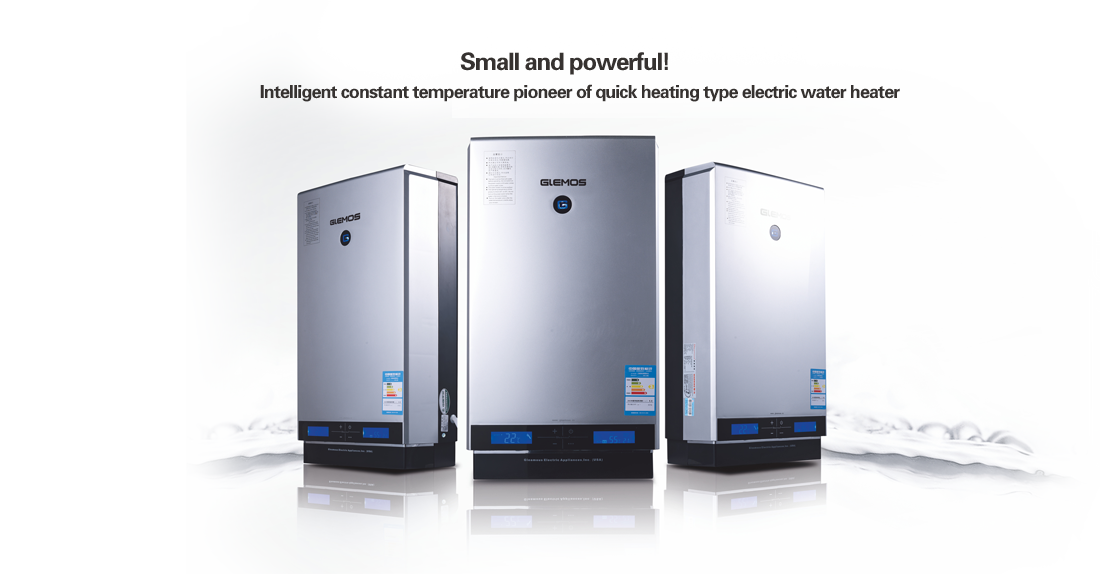

Small and powerful!

Intelligent constant temperature pioneer of fast heating type electric water heater！







Automatic intelligent constant temperature

A key to set the temperature of the bath, can ensure the constant temperature and comfort bath.







"Sensing touch control"

LED highlight, working mode and the use of the state at a glance






Using the fifth generation of dynamic thermal cycling heating system, the heating efficiency is higher, and the heating rate is faster.

  Unique high, medium and low three intelligent mode, high-grade mode in winter, spring and autumn with mid-range pattern, summer low mode, according to different climate select different modes of heating, energy saving.
  The thermal efficiency of the metal heating technology is high, and the service life is longer than the ordinary heating pipe. The use of integral foaming technology, effectively prevent heat loss, high efficiency and energy saving.
  Automatic intelligent constant temperature,just a key to set the temperature of the bath, you can ensure that the constant temperature and comfort bath.


Sensing touch control，LED high brightness display, working mode and the use of the state at a glance.



First built in the physical protection of the patent technology, to ensure that 100% safe bath.

  Power off memory function, remember that you last time to use the set of bath data, without the need to repeat settings.
  2.5 square mm copper core wire can easily load, breaking the bottleneck of installation, into every household.
  Built in 30 minutes without operation, automatic intelligent standby function, put an end to repeated heating, energy saving.




"Three mode intelligent heating"

Different heating modes, energy saving and energy saving!


Product model: GS1-50D/70D


Product parameters
external dimensions：55.8*31*15.5cm
Model
power
capacity
Maximum temperature
Air capacity
Meter range
Power cord
classification of waterproof

GS1-50D

5KW
12L
90℃
32A
10(40)A
≥2.5MM2
IPX4

GS1-70D

7KW
12L
90℃
40A
10(40)A
≥4MM2
IPX4
